Single Hotend Print Volume 195 200 190 (mm³)
Dual Hotends Print Volume 183 200 190 (mm³)
Machine Dimensions.390 390 390 (mm³)
Machine mass 25 kg
Max. 320 °C Hotend Temperature (100 W) (400 °C optional)
Max. 150 °C Hotbed Temperature (500 W)
Compatible with ABS, PLA, HIPS, PETG, PEEK, ULTEM™, NYLON, Carbon Fiber etc. and all the other industrial filaments
Compatible with nozzles from 0.1 mm to 1 mm
High Torque Filament Feeding System
Precision Linear Guide Rails for All Axes
Precision Ball Screw Drive System for Z-Axis
A New Perspective to the CORE XY Belt System
SKF and FAG Roller Bearings
All of the metal components are produced from 6xxx and 7xxx series aluminium by inhouse machining
Anodized Coated Machine Components (MIL-A-8625F Class 1 Type II, Optional)
Full Aluminium Body
3.2" Touch Screen & 32 bit Control Card
Power Failure Detection and after Printing
Télémécanique/Leuze Inductive Sensors
High Precision and Silent Stepper Motor Drivers
Wireless
All Electronic Components are Industrial Based

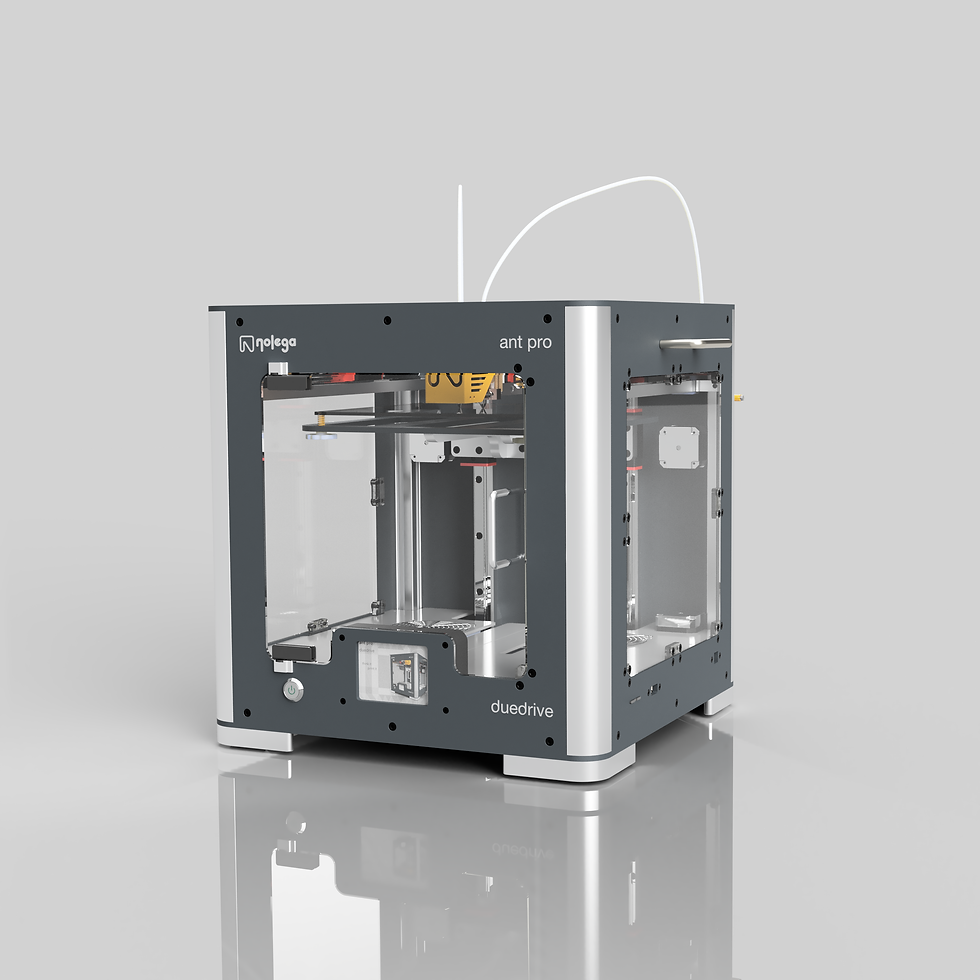

Nolega AntPro3D DueDrive is ready for you to create!
Tech Specs
